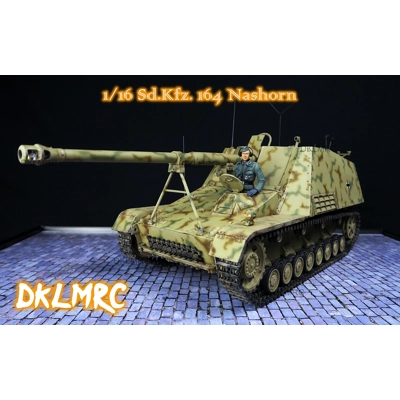

1/16 RC Sd.Kfz. 164 Nashorn model kit

Please contact us if you would like to purchase this kit.

--Limited Edition--
New release 1/16 Sd.Kfz. 164 Nashorn Tank Destroyer model kit!

Comprises different metals including stainless steel, aluminum alloy, brass, etc, 3D printed SLA and SLS (nylon) components, resin, rubber, etc.

Involves different engineering processes, such as 3D printing, CNC, wire cutting, and handcraft.

Available as static display kit, ARTR, and RTR models

Basic Kit features:-
- Includes 42pcs CNC metal parts; 24pcs 3D printed metal parts; and over 330pcs 3D printed
SLA & SLS components.
- Full-length aluminum gun barrel (8,8cm Pak43/1), with highly detailed brass-made muzzle brake.
- Fully functional brass gun sliding rail and supports to simulate gun firing and recoiling motions.(gun recoil action simulated by a servo for RC version)
- Gun mount assembly is mainly made of 3D printed SLS (nylon) material to increase durability
- Realistic gun elevation (driven by mini metal gearbox) and traverse actions.(15 degrees on
both sides performed custom-made gearbox)
- Devices with functional decorative parts including hinged hatches, rotational telescope mounts, hinged and foldable ammo box door panels, gunner hand operating wheels, gun travel locks, hinged front fenders, etc.
- CNC gun tower side and rear armor plates made in aluminum alloy with the front slanted armor plate made of 3D printed aluminum. All gun tower armor plates are connected firmly by tiny metal hexagonal bolts and nuts.
- Chassis made of 3D printed SLA and designed in one piece to increase its strength with an add-on horizontal steel bar for extra reinforcement.
- Newly develop easy-to-disintegration system fully performed by strong magnets for easy repair & maintenance.
- Realistic stainless steel leaf spring road wheel suspension system strengthened by 3D-printed stainless steel swing arms.
- Sprocket wheels, idler wheels, road wheels, and track supporting wheels are all 3D printed
nylon to enhance their durability.
- Road wheels and track supporting wheels come with metal ball bearings, steel shafts and
rubber rims.
- Includes metal tracks.
- Adjustable track tensioner system.
- Comes with PDSGB stainless steel mount plate and output shafts to fit into the sprocket wheels.
- Includes two (2) lifelike resin-made tank crew from "Tanker Craft"; Gunner and Loader. The driver and commander are sold separately in the Figure section at our store.

# Metal PDSGB is available for the ARTR kit version.
# Click to download the Instruction Manual
# For those who are interested to get a fully assembled and painted RTR Nashorn model,
please contact us to enquire about Commission built details via email at dklmrc@gmail.com.

Remarks:-
# The basic model kit is NOT assembled and painted. It comes as parts that require to be
assembled and painted by the modelers themselves.

Propotype demo video:
